The self-contained M33 air cleaner is a media filtration system designed for general background or ducted for source capture applications. The M33V is a portable version that maximizes flexibility in use. Both air filtration systems can be ordered with three-stage filtration which will effectively remove a broad range of airborne contaminants including fine dusts, smoke, soot, vapors mist, VOC’s and more at a rate of up to 1300 cfm. A variety of filter configurations are available.
Learn more about the M33 and M33V media air cleaners with the information below. Features and benefits on our Local Exhaust Ventilation (LEV) / Source Capture Arm solutions can be found here. We also carry parts for our M33 and M33V air cleaners.
Request Quote
M33V Media Air Cleaner
The M33V from Air Quality Engineering, Inc. is a self-contained media air cleaning system designed for use in source capture applications where mobility is desired. The M33V can be ordered in a three-stage filtration configuration which will effectively remove a broad range of airborne contaminants including fine dust, smoke, soot, vapors, mist, VOC’s and more at a rate of up to 1250 cfm.
M33V FEATURES & SPECIFICATIONS
| DIMENSIONS |
73″H x 31.13″W x 41.25″L |
| WEIGHT |
274.5 lbs. installed weight
324 lbs. shipping weight
Optional carbon module adds 44 lbs. to the installed and shipping weight |
| CABINET |
16 gauge welded steel cabinet with a baked enamel, textured coated finish. Built-in sump and drain connection for oil mist removal. Four heavy-duty swivel locking casters. |
| MECHANICAL ARM |
13′ externally supported arm swings 180º on its axis and reaches from floor to 13′ high. Once this arm is positioned, the hood and hose remain in place until moved. |
| POWER INPUT |
| Model |
Vac |
Hz |
Phase |
Amps |
| 00265 |
120 |
60 |
1 |
13.6 |
| 00266 |
208 – 240 |
60 |
1 |
6.8 – 6.6 |
|
| PRIMARY FILTER |
12″ x 24″ x 26″ 5 pocket, 42 sq. ft. of synthetic filter media. Optional filter will increase filter media to 100 sq. ft. |
| PRIMARY FILTER EFFICIENCY |
| Filter PN |
Filter Efficiency* |
| 41182 |
MERV 14 Bag |
| 41181 |
MERV 13 Bag |
| 41136 |
MERV 14 ESF |
| 41137 |
MERV 13 ESF |
* Efficiency based on ASHRAE 52.2 |
| PREFILTER |
30-35% efficiency, pleated 12″ x 24″ x 4″. Filter media is a cotton and synthetic blend. Total prefilter media area is 15 sq. ft. |
| MOTOR |
1 HP sealed ball bearings and thermally protected. Adjustable motor sheave allows for field adjustments to the rated air flow. |
| BLOWER |
Forward curved, ball bearing, belt driven centrifugal blower. This blower is capable of moving 2250 cfm free air.
|
| INSTRUMENTATION |
Minihelic Gauge – Factory installed pressure gauge designed to determine filter replacement cycle.
Indicator Light – Light indicates that the blower motor is energized properly.
|
| FILTER ACCESS |

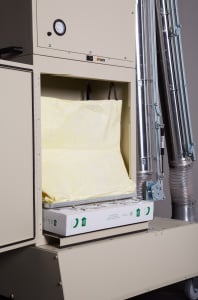

Side load track system with hinged access door.
|
| SOUND LEVELS |
67 dBa at 9′, 66 dBa at 15′.
|
CARBON FILTER
OPTION – PN 07125 |
22 lbs. activated, refillable carbon module. If the carbon filter module is to be used as the third stage of filtration behind the prefilter and primary filter, then the optional rigid filter will be substituted for the standard bag to allow room for the carbon filter. Please note that the maximum air flow rating for the carbon module is 500 cfm if the carbon filter is ordered, the air flow will be factory set at 500 cfm.
|
ADDITIONAL FEATURES:
- 36 month parts warranty
- One externally supported 13′ arm with 8″ or 6″ diameter smooth pipe with hood
- 1 HP maintenance-free motor
- 35% efficient 4″ pleated prefilter
- 10′ power cord with molded plug
OPTIONAL EQUIPMENT:
- Halogen light and hood control
- 22 lb. carbon module
- 1.5 HP and 2 HP motor upgrades available
- 65% efficient pleated prefilter
- Extended service filters
