Indoor air quality has become even more important today as businesses work to enhance air filtration in the place of business and work, and in other institutions. A common recommendation is to increase the MERV efficiencies of your facility’s HVAC system (although unfortunately, many systems are not designed to accommodate the increased restriction of the higher efficiency filters).
In addition, the Centers for Disease Control and Prevention (CDC) COVID-19 workplace guidelines suggest considering the use of auxiliary portable HEPA filtration. Air Quality Engineering offers roll-around portable true HEPA filtration as well as ancillary ceiling-mounted and this suspended ceiling HEPA-like units (95% DOP Efficient/MERV 16 Efficient).
Your HVAC contractor can recommend the best placement of portable or ceiling-hung air cleaning units in order to aid appropriate air flows and ventilation for your workplace environment in these challenging times. Air quality is an important investment your clients, customers, and employees have come to rely upon and value.
The CM-12 commercial air cleaner is the ultimate solution for indoor air pollution capturing both particulate and gaseous contaminants. This air purification unit excels at getting pollen, dust, vapors, odors and many other irritants out of the air with high efficiency, long lasting disposable filters.
Meets California ozone emissions limit: CARB certified.
Learn more about the MiracleAir® CM-12 indoor air cleaner with the technical specification information below. Here’s a parts list for all our air cleaners designed to remove dust vapors and more from the air.
Request Quote
MiracleAir® CM-12 Specifications For Commercial Space
High Performance Particulate and Vapor Filtration Solutions
Indoor air quality issues, whether in schools, offices or waiting rooms, require a combination of high efficiency filtration and absorbent media to handle both airborne contaminant and odor/ vapor removal. Air Quality Engineering’s EverClear™ CM-11 and MiracleAir® CM-12 air cleaners are designed to meet those needs.
The CM-12 is designed to handle:
- Office buildings
- Stores
- Dental office reception rooms
- Doctor office waiting rooms
- Schools and higher education buildings
- Banks
- Other types of business
- And more
The CM-12 delivers efficiency, savings, and minimal maintenance cost by:
- Removing dust, smoke, pollen and other airborne particles with 95% efficient (at .3 micron) HEPA type filters
- Using 3-speed controller allowing ease of airflow adjustment
- Increased filter life by using large volumes of media used in both the particulate and the odor/vapor disposable filters
- Ease of filter access within the units for maintenance
The CM-12 air cleaner is THE air cleaning solutions for indoor air quality! Meets California ozone emissions limit: CARB certified.
MiracleAir® CM-12

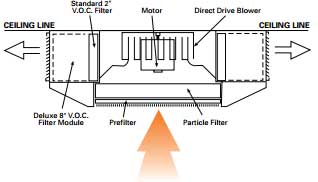

Installation
The CM-12 can easily be mounted to the ceiling or wall and plugs into a 120V outlet. Optimal positioning is nearest the source of contaminant.
Unit Part Numbers
Standard CM-12
| 00332 |
MiracleAir® CM-12, WHITE, 120V, 5 lbs. carbon |
| 00432 |
MiracleAir® CM-12, BLACK, 120V, 5 lbs. carbon |
| 00339 |
MiracleAir® CM-12, WHITE, 120V, 5 lbs. carbon, 3-speed wall control |
| 00434 |
MiracleAir® CM-12, BLACK, 120V, 5 lbs. carbon, 3-speed wall control
|
Deluxe CM-12
| 00337 |
MiracleAir® CM-12, WHITE, 120V, 22 lbs. carbon |
| 00431 |
MiracleAir® CM-12, BLACK, 120V, 22 lbs. carbon |
| 00338 |
MiracleAir® CM-12, WHITE, 120V, 22 lbs. carbon, 3-speed wall control |
| 00433 |
MiracleAir® CM-12, BLACK, 120V, 22 lbs. carbon, 3-speed wall control
|
Replacement Filters
| 41194 |
Mesh Prefilter, CM-12 |
| 41039 |
Media Prefilter Pad, 24″ x 29.5″ x 1″ |
| 41190 |
MERV 16 (95% DOP) Main Filter CM-12 |
| 41196 |
Carbon Filter, disposable (2 each required per Standard Unit) CM-12 |
| 07163 |
VOC Replacement Kit CM-12 (1 each required per Deluxe Unit)
|
Optional Accessories
| 07171 |
Wall Mount Kit CM-12 |
| 41241 |
Prefilter Frame CM-12 for Disposable Pads |
| 41039 |
Media Prefilter Pad, 24″ x 29.5″ x 1″
|
Capacity (CFM)
| Low Speed |
Med. Speed |
High Speed |
| 380 |
630 |
850 |
Dimensions
| Length |
Width |
Depth |
| 39″ |
22 5/8″ |
13 1/4″ |
Weight
| Model |
Shipping |
Installed |
| Standard |
115 lbs |
90 lbs |
| Deluxe |
149 lbs |
124 lbs |
Efficiency (based on filter selection)
| Efficiency |
Part No |
Filter Description |
| 95% DOP on .3 micron |
41190 |
MERV 16 (95% DOP) Disposable Filter |
Power
115V, 4.3 AMPS, 60Hz; 3-prong, 10-foot power cord plugs into standard grounded outlet.
230V, 2.2 AMPS, 60Hz
Specifications subject to change without notice. This product is not available for resale or installation in California.
